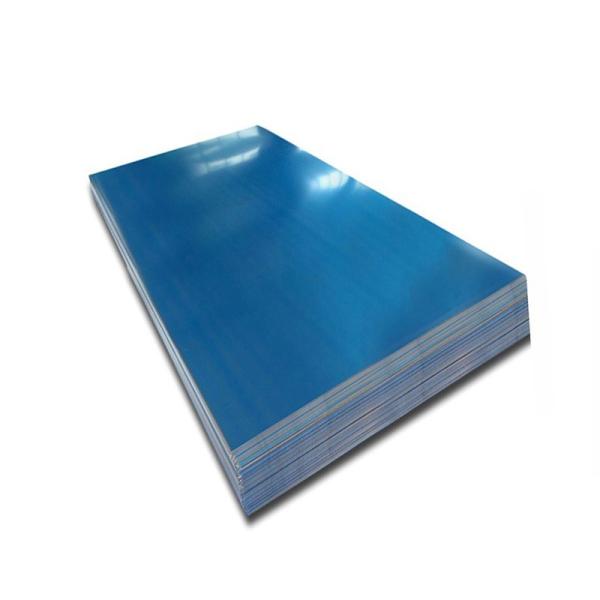

5000 Series 5454 Mirror Finish Aluminum Sheet Used for Trailer Tank
5454 Aluminum Alloy is an alloy in the wrought Al-Mg family. It is often used in parts that require
complex forming and bending, such as heads and partitions of oil tankers
5454 mirror aluminum sheet has decorative performance, high temperature resistance and high
reflectivity; it can improve the aesthetics of the tanker and provide a good self-cooling effect.

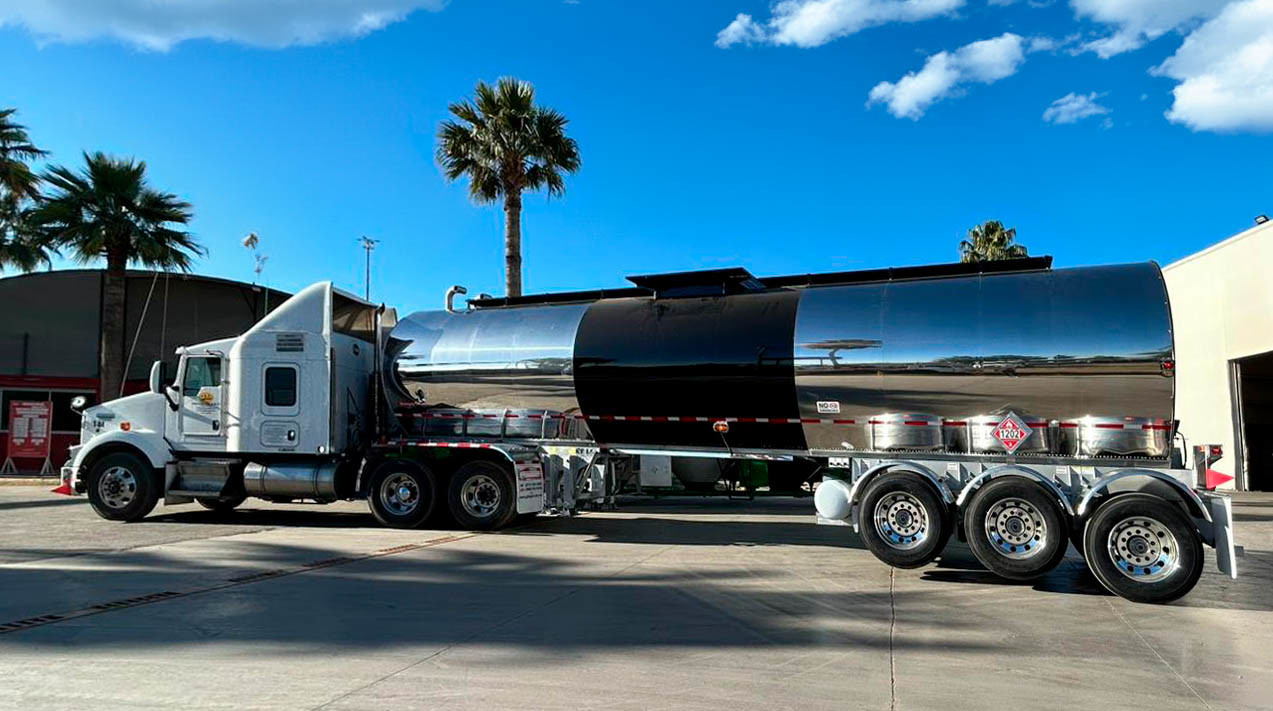

The use of aluminum plate for oil tank truck
Aluminum alloy 5454,5754,5052,5083,5182,6061 is widely used for the tank trailers, we produce
5052, 5454, 6061, 3003 aluminum sheet for Mexico customers, they use these material to produce
the trailer tank , 5454 is for the tank body, 5052 is for the head and bafflex, 6061 is for the pipe
ending to tie with valves with screws, 3003 is for the ladder to the access hole and so on.
5454 Aluminum Alloy Advantages for tank trailer
• Lightweight design: Compared with traditional steel, 5454 aluminum plate has a lower density, which
helps to realize the lightweight design of tank trucks and improve fuel economy and transportation efficiency.
• High strength: 5454 aluminum sheet has high strength and can withstand mechanical stress and impact load.
• Good corrosion resistance: 5454 aluminum sheet can resist the corrosion of common fuel and oil, prolonging
the service life of the tanker.
• Weldability: 5454 aluminum sheet has good welding performance and can be reliably connected with
other materials.
Key properties
| 5454 Aluminum Material Mechanical Properties |
| Alloy & Temper | Thickness | Tensile Strengths – ksi |
| ULTIMATE | YIELD | Elongation % min in 2in or 4D |
| Min | Max | Min | Max |
| 5454-H32 | .020-.031 | 31 | 37 | 25 | 25 | 6 |
| .032-.050 | 31 | 37 | 25 | 25 | 8 |
| .051-.113 | 31 | 37 | 25 | 25 | 10 |
| .114-.161 | 31 | 37 | 25 | 25 | 12 |
| .162-.249 | 31 | 37 | 25 | 25 | 14 |
| .250-.499 | 31 | 37 | 25 | 25 | 16 |
Company Advantages
♦ The final product quality is mainly based on slab quality. The advanced equipment and optimized process are
adopted to improve the quality of Aluminium alloy slab which can guarantee Aluminium alloy products at high

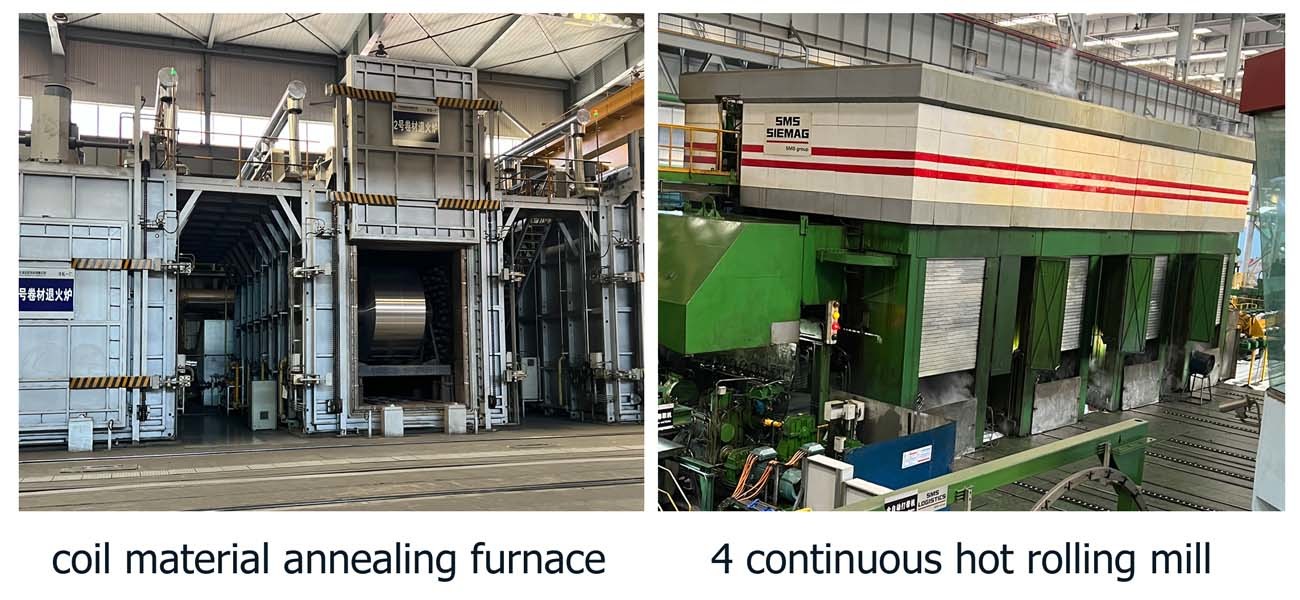

performance. All the melting and holding furnaces are supplied by GAUTSCHI Switzerland Company.
♦ 1+1+4 hot rolling mill and 1+5 hot rolling mill from SMS Group Germany.All the hot finishing rolling mills
adopt the CVC flatness control technology, which can produce hot rolled coils, sheet with ideal flatness and
good shaping.

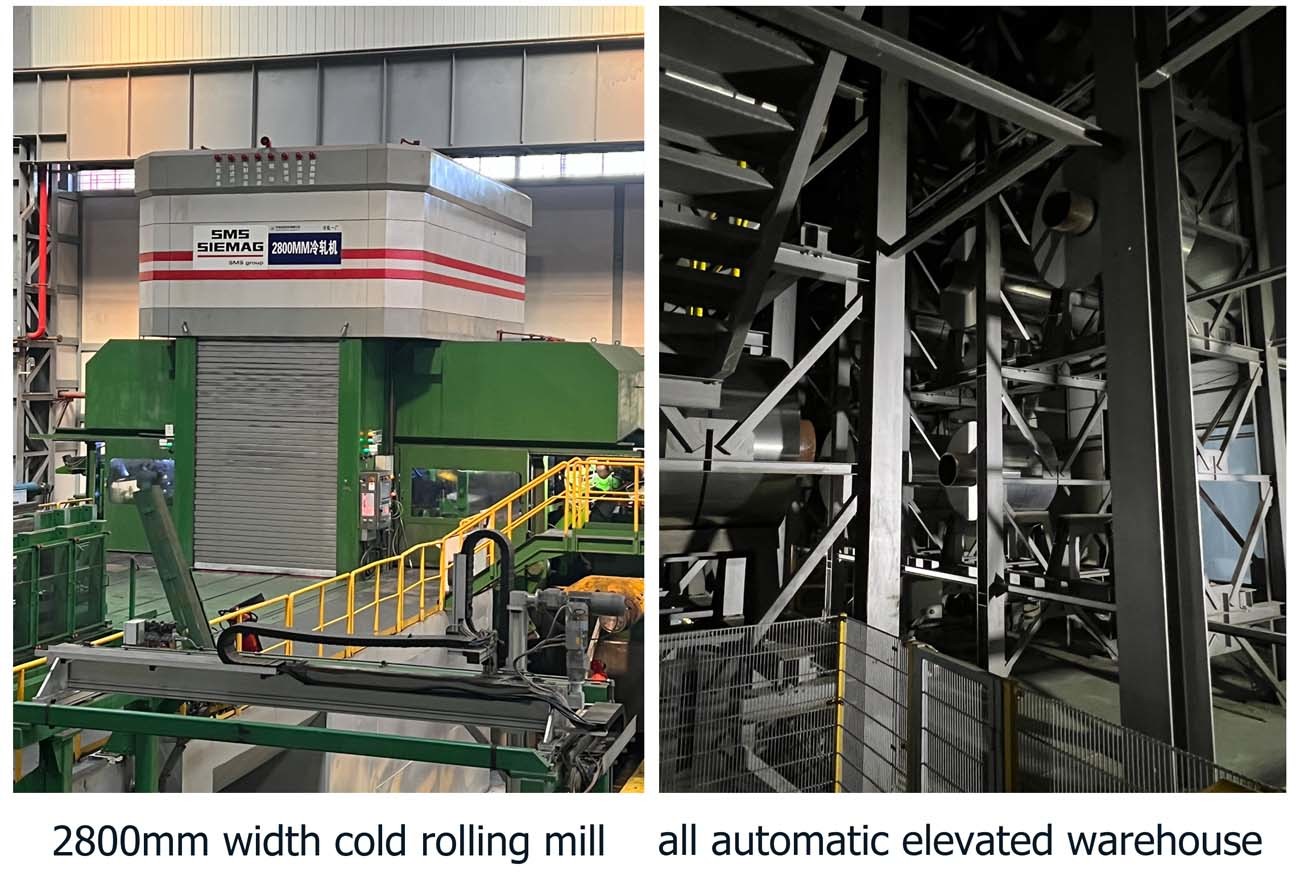

♦ 6 sets of cold rolling mill (4 sets of single-stand mill and 2 sets of three-stand tandem mill) from SMS Group
Germany. All these mills are applied with SMS patent 6 High CVC technology , they are the most advanced cold
rolling mills in the world currently.
Packages & Transportation

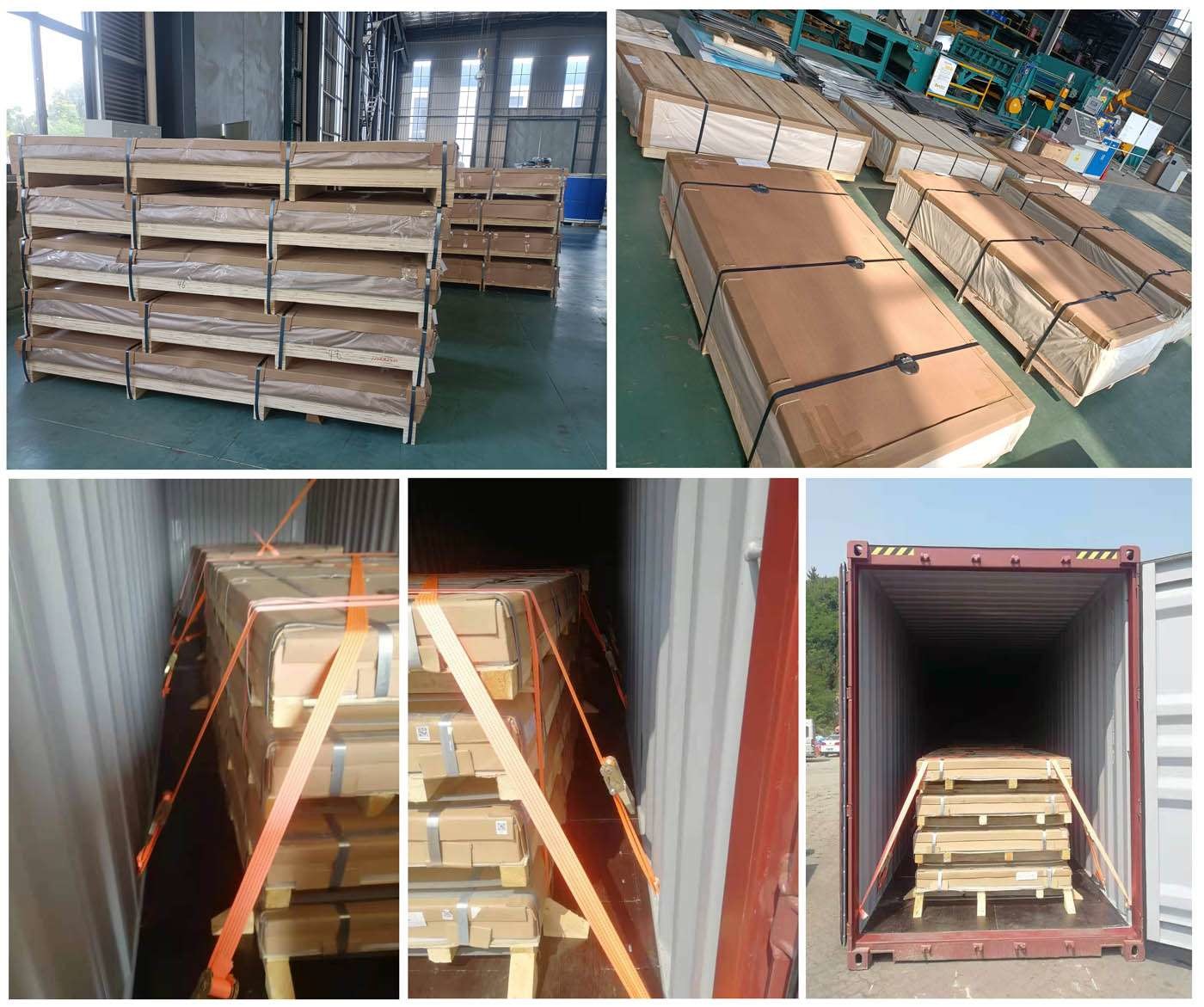

We use the dust proof kraft paper packages with wood pallet, steel strip with the lock to pack it.
it also has the plastic water proof protective layer inside, 2 labels on the surface of every package.

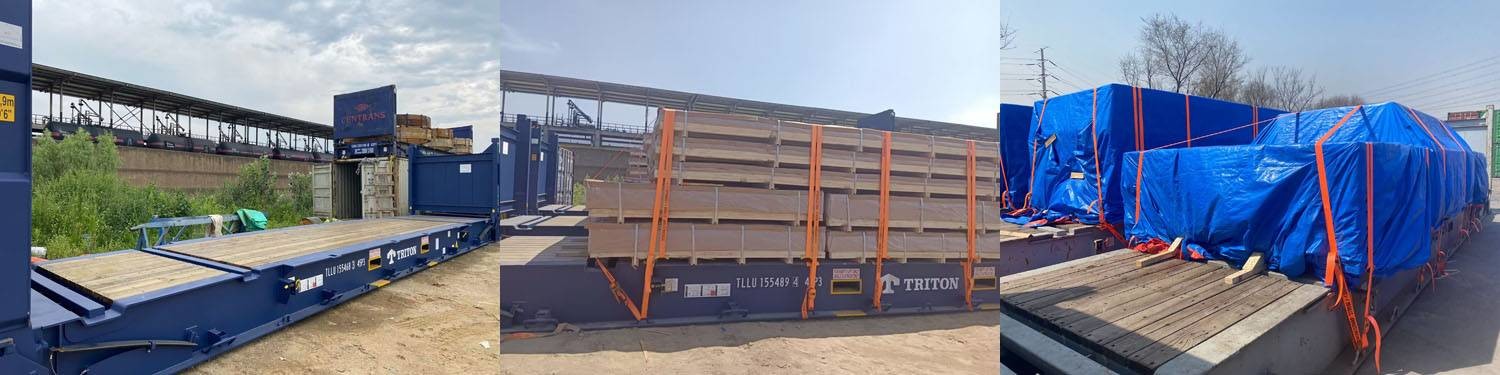

Oversize width, we use platform flat container (FR Container) for the transportation..
