5052 aluminum alloy sheet mill finish aluminum sheet
5052 aluminum sheet is an Al-Mg alloy. It has high strength, especially fatigue resistance, and
high plasticity and corrosion resistance.
Excellent weldability is another reason why 5052 aluminum is a favored material in construction
and manufacturing.
Key properties and benefits
5052 aluminum, most notable properties are its weldability, formability, strength, durability,
and electrical and thermal conductivity.
| 5052 Aluminum Mechanical Properties |
| Alloy & Temper | Thickness | Tensile Strengths – ksi |
| ULTIMATE | YIELD | Elongation % min in 2in or 4D |
| Min | Max | Min | Max |
| 5052-H32 | .008-.012 | 28 | 35 | 25 | 25 | 5 |
| .014-.019 | 28 | 35 | 25 | 25 | 7 |
| .020-.031 | 28 | 35 | 25 | 25 | 8 |
| .032-.050 | 28 | 35 | 25 | 25 | 10 |
| .051-.113 | 28 | 35 | 25 | 25 | 11 |
| .115-.161 | 28 | 35 | 25 | 25 | 12 |
| .162-.249 | 28 | 35 | 25 | 25 | 14 |
| .250-.499 | 28 | 35 | 25 | 25 | 16 |
| .500-1.00 | 28 | 35 | 25 | 25 | 18 |
Applications for 5052 aluminum
5052-h32 automotive sheet is widely used for automotive engine outer panels, bus trunk panels,
bus skid-proof panel, automotive fuel tank,etc.
Car compartment: The uses of aluminum can reduce the overall quality of the whole car to a certain
extent, realize the lightweight of the car body, thereby reducing the emission of carbon dioxide,
improving the fuel efficiency, and ensuring the energy-saving effect.
Coach body Panel: The 5052 aluminum body panel can can greatly reduce the weight of the car
body to reduce energy consumption and lower the center of gravity of the vehicle, thus bringing
more stable operation.
Air storage cylinder: It is to maintain the pressure of the compressed air system's pipe network
without major fluctuations. The tensile strength of 5052-h32 aluminum is 210-260mpa, and the
elongation is not less than 130. It is specially used for automobile gas storage tanks and automobile
fuel tanks.

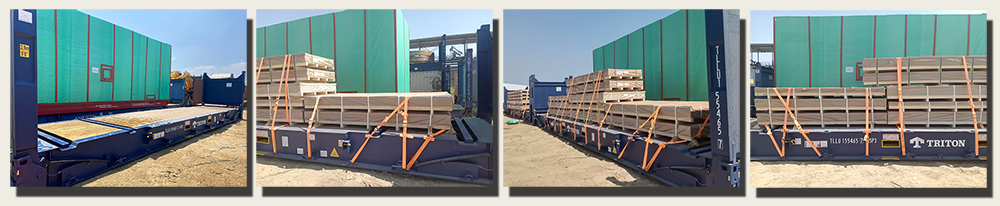

These are some samples we made below :
What are the characteristics of 5052 aluminum vs. 6061 aluminum?
5052 and 6061 are likely the two most widely used aluminum grades. Both are lightweight, offering strong
corrosion resistance and high tensile strength, but which is “best” depends on the requirements of the
application. 5052 is easier to bend and form without cracking, while 6061 can be extruded into various
shapes and strengthens with heat treatment.
Our company advantages
We Own World Advanced Production Equipment
• The final product quality is mainly based on slab quality, advanced equipment and optimized process.
Al the melting and holding furnaces are supplied by GAUTSCHI (Switzerland) Company.
• 1+1+4 hot rolling mills and 1+5 hot rolling mills from SMS Group Germany. All the hot finishing rolling mills
adopt the CVC flatness control technology, which can produce hot-rolled strips and coils with ideal flatness
and good shaping in the world.
• 6 sets of cold rolling mill (4 sets of single-stand mill and 2 sets of three-stand tandem mill)from SMS Group
Germany. All these mills are applied with SMS patent 6-High CVC technology and are the most advanced cold
rolling mills in the world currently. The cold rolling mills can produce aerospace sheet,can stock and automotive
sheets etc.
| Code | Name | Brand |
| a | aluminum ignot melting furnace | GAUTSCHI (Switzerland) |
| b | 2800mm width single stand cold rolling mill | SMS Group (Germany) |
| c | 4 continuous hot rolling mills | SMS Group (Germany) |
| d | heavy crop and dividing shear | SMS Group (Germany) |
| e | coil material annealing furnace | SMS Group (Germany) |
| f | all automatic three-dimensional elevated warehouse | Dematic (USA) |
